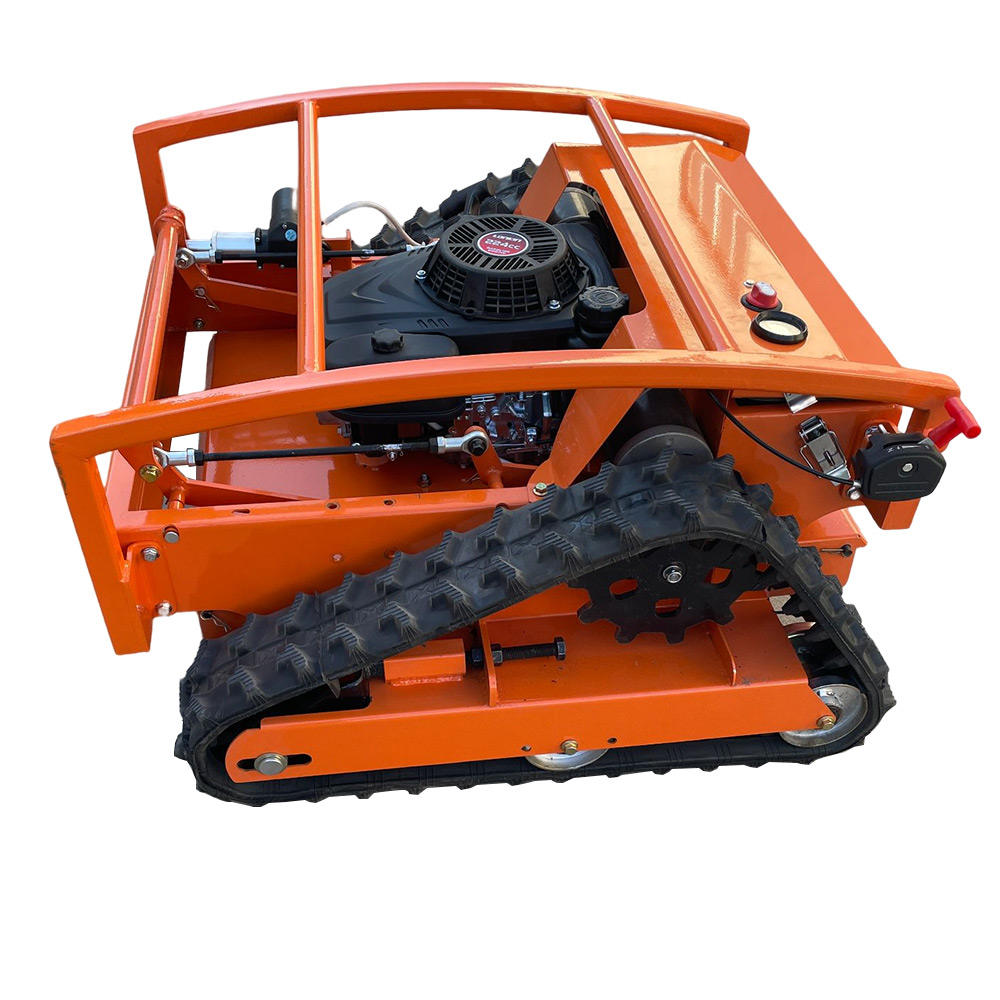

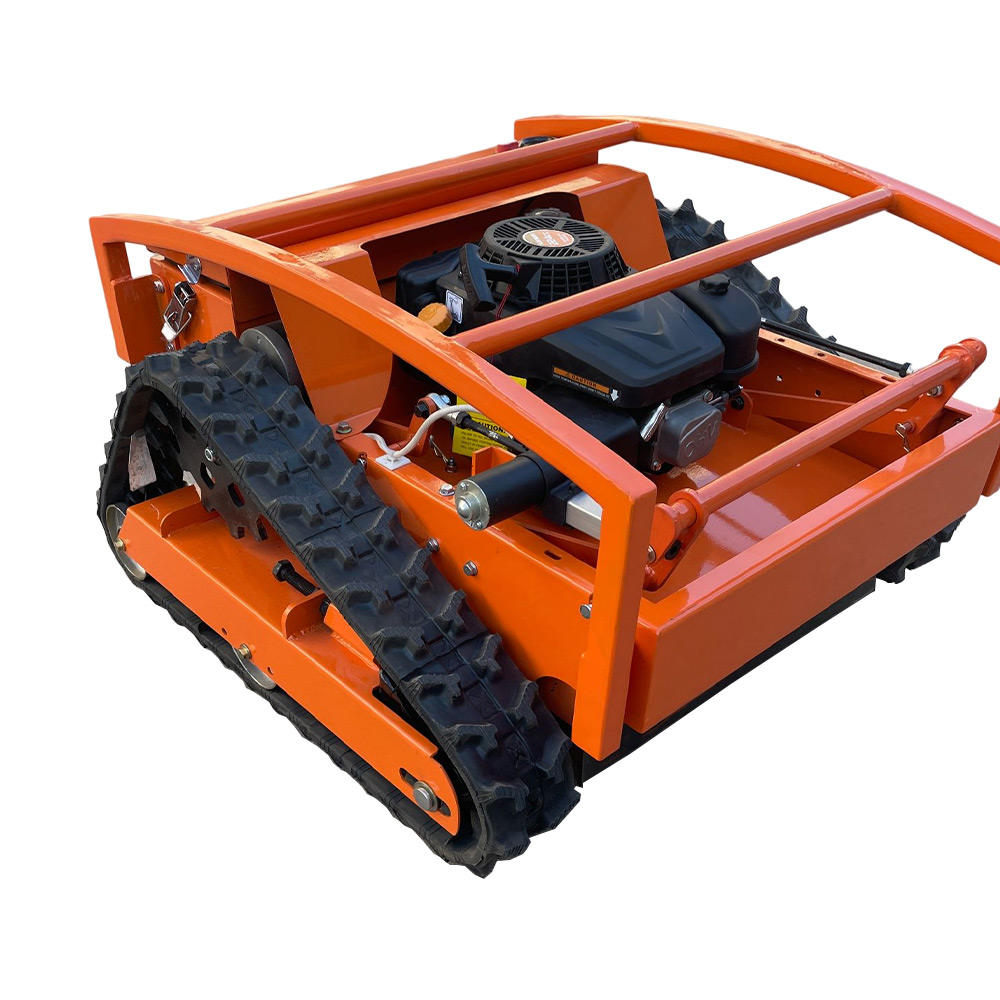

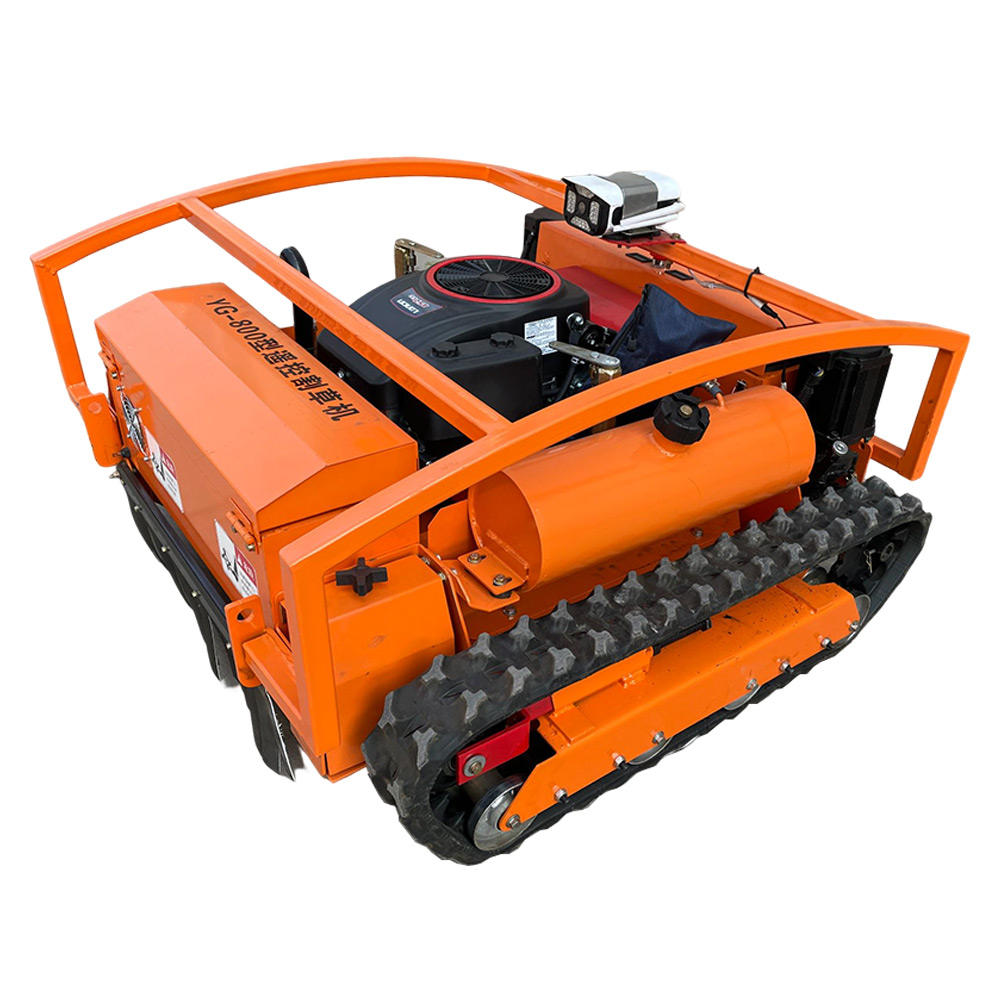

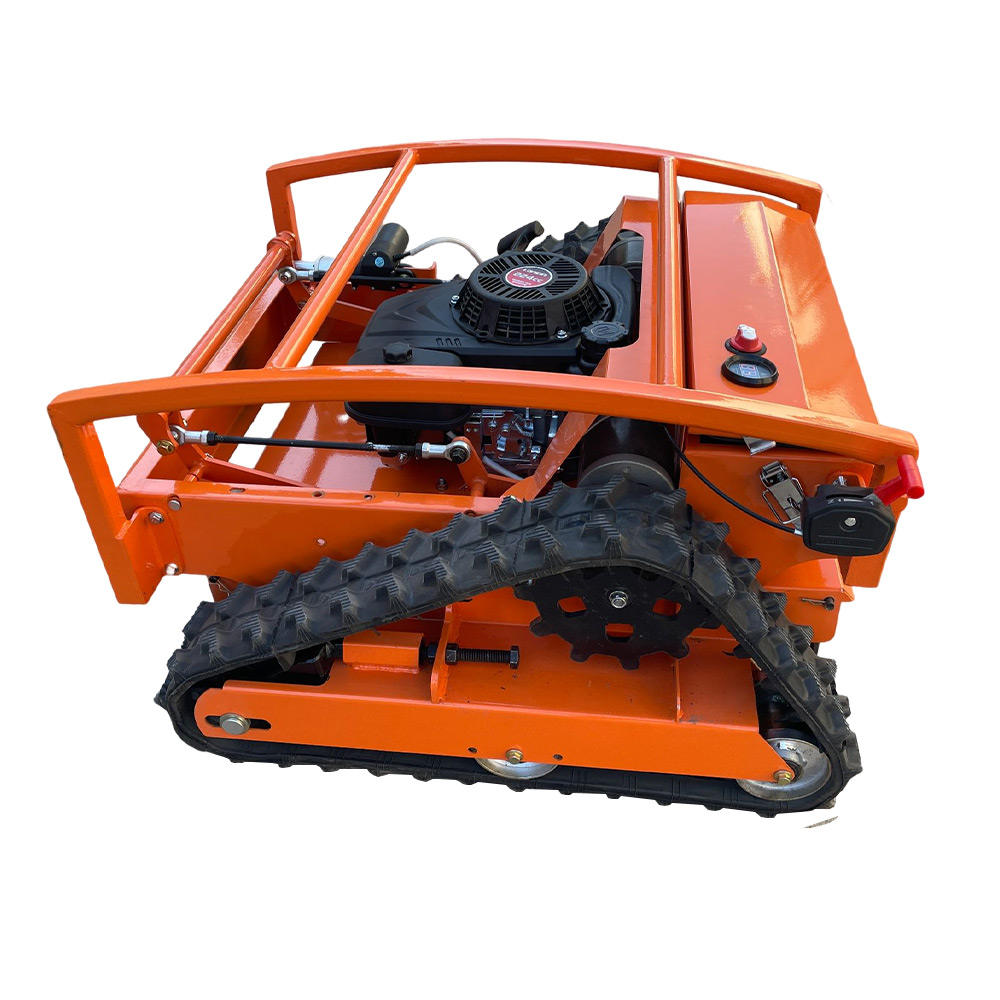

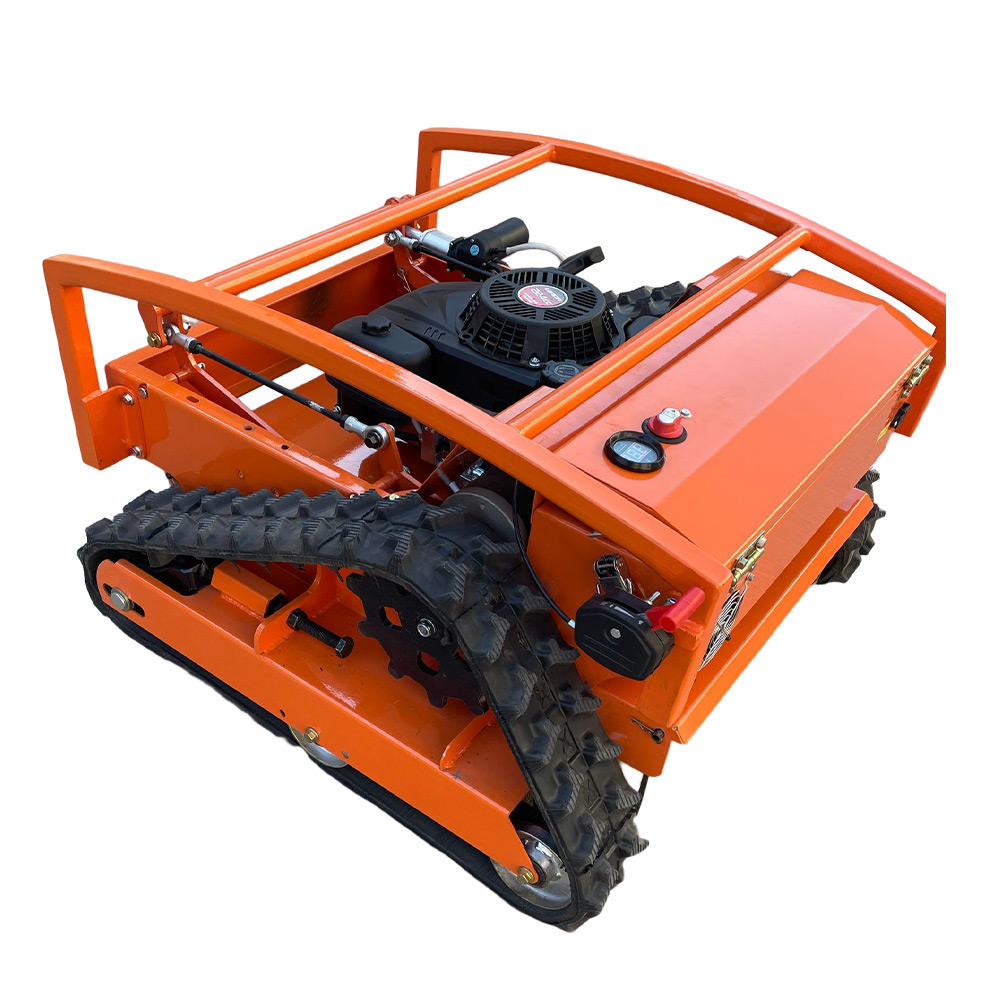

Crawler Robot Lawn Mower Self Propelled Remote Control Walking Garden Grass Cutting Machine Automated Lawn Mower

Classification: 550MM
Details

Key attributes

feature
2-Stroke, Height Adjustable Handles, Self Propelled, Telescopic Handle
grade
Diy
voltage
24 V
power source
Gasoline engine
place of origin
Shandong
customized support
OEM, ODM
model number
SKK55
brand name
CF
engine displacement
224cc
forward speed
0~5 adjustable
warranty
1
Product name
Remote Control Lawn Mower
Dimensions (LxWxH)
770*790*420 mm
Model
SKK55
Structural quality
87kg
Grass height
30~120 adjustable

Packaging and delivery

Packaging Details
Choose according to customer requirements
Port of dispatch
Qingdao Port
Selling Units
Single item
Single package size
77X79X42 cm
Single gross weight
87.000 kg

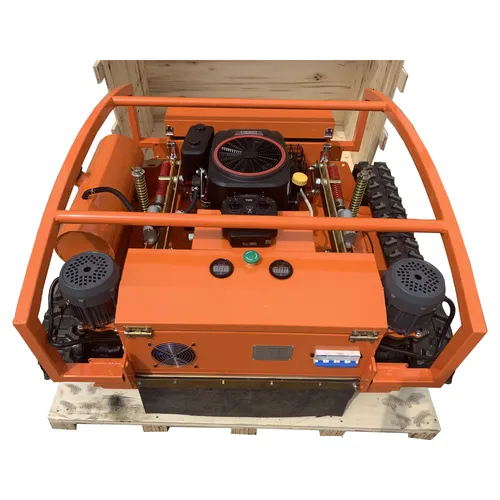

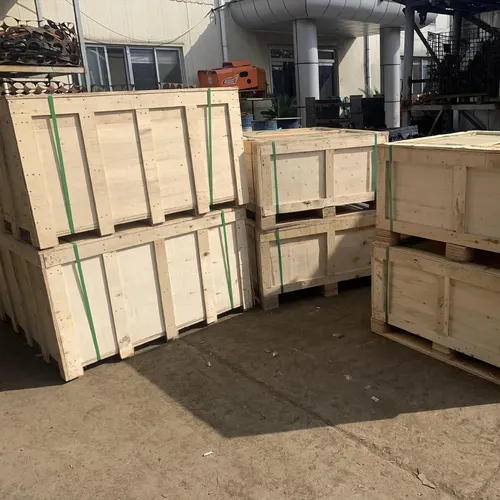

Packaging examples

Supply capacity

Supply Ability
10000 sets per Month
HOST

BATTERY
Project Name
Unit
Parameter Value

Project Name
Unit
Parameter Value
Model
/
SKK55-4

Battery Type
/
Dry Battery
Dimensions (L×W×H)
mm
770-790-420

Remote Control Battery Voltage
V
24
Structural Quality
kg
87

Walking Battery Voltage
V
24
SUPPORTING POWER

TRAVEL MOTOR
Project Name
Unit
Parameter Value

Project Name
Unit
Parameter Value
Model Name

LC1P75F-1

Rated Power
Kw
1.2
Structure Type

Horizontal bar four-stroke

Operating Voltage
V
24
Calibration Power
Ps
9

Rotating Speed
r/min
1000-3000
Rated Speed
r/min
3600

Walking Speed
Km/h
0~5 adjustable
Fuel Type

gasoline

Remote Control Distance
m
≤200
Average Fuel Consumption
L/H
1-1.5

Working Slope
Spend
≤40
Displacement
CC
224




MATCHING LAWN MOWER

Configuration and Features
Project Name
Unit
Parameter Value

1. Powered by Loncin gasoline engine, gasoline-electric hybrid.
2. Driven by a motor, it can turn around at zero angle, and mow
grass in forward, backward and turning.
3. The control adopts industrial remote control device, which is easy to operate, low failure rate, and the remote control distance is 200 meters.
4. The body is low and four-wheel drive, especially suitable for:greening, orchards, hills, terraces, and mowing.
5. The endurance process is as long as 7-8 hours.
Number Of Tools
pcs
2

Tool Speed
r/min
2000-3000

Mowing Width
mm
550

Cutting Height
mm
70
